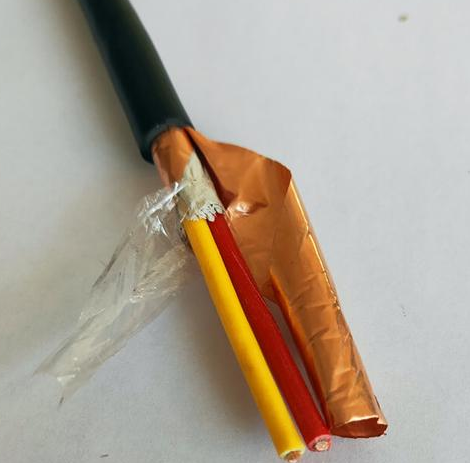

控制電纜KYVP2-2*4
產品特點及用途
本產品適用于冶金、電力、石油化工等工礦企業中交流額定電壓(U0/U) 450/750V及以下的電器儀表、配電裝置的信號傳輸、控制和測量系統。
執行標準
本產品按照GB9330(IEC227)標準制造。
低煙低鹵阻然電纜按照企業標準制造，阻然特性符合GB/T18380.3 (IEC332-3)、GB12666.7 (IEC1034)規定要求。
低煙無鹵阻燃電纜按照企業標準制造，阻燃特性符合GB/T18380.3 ( IEC332-3)、IEC754-2、GB12666.7(IEC1034)規定要求。
阻嫌電纜按照企業標準制造，阻然特性符合GB/T18380.3規定要求。
使用特性
1.額定電壓(U0/U):450/750V.
2.電纜導體的***高長期允許工作溫度:聚乙烯絕緣電纜為:70'C;交聯聚乙烯絕緣電纜為:90℃:聚氯乙烯絕緣纜為：70℃， 90℃ ， 105℃(根據型號后的耐溫等級耐定);低煙無鹵阻燃聚烯烴絕緣電纜為:70℃ ，90℃(根據型號后的耐溫等級而定)。
3.電纜的***低允許敷設溫度:聚乙烯護套電纜:-20V;聚抓乙烯護套及低煙無鹵阻熱聚烯烴護套電纜:0℃(低于***低允許敷設溫度時應預先加熱)。
4.電纜推薦允許彎曲半徑:有愷裝或繞包屏蔽結構的電纜應不低干電纜外徑的12倍;其余結構中電纜應不低于電纜外徑的6倍。
5.電纜的嫌燒特性:阻燎電纜能經受GB12666.5(I EC332-3)規定的成束然燒試驗.低煙低鹵阻然電纜能經受GB12666.5(IEC 332-3)規定的成束燃燒試驗，且然燒時煙濃度應符合GB 12666.7(IEC 1034)規定，燃燒析出氣體中HCL含量應≤ 100mg/g(符合IEC 754-1要求)。低煙無鹵阻燃電纜能經受GB12666.5 ( IEC332-3)規定的成束L燒試驗，且烘燒時濃度應符合GB12666.7 (IEC 1034)規定，燃燒析出氣體水溶液的PH值≥ 4.3,導電率≤ 10μs/mm(符合IEC 754-2要求)。
產品型號規格說明
| KVV,KVVR,KVVP,KVVRP, KYJV,KYJVR,KYJVP, KYJVRP,ZR-KVV,ZR-KVVR, ZR-KVVP,ZR-KVVRP, ZR-KYJV,ZR-KYJVR, ZR-KYJVP,ZR-KYJVRP |
(2,3,4,5,6,7,8,10,12,14,16,19,24,27,30)×(0.75mm2,1.0mm2,1.5mm2,2.5mm2) |
| (2,3,4,5,6,7,8,10,12,14)×(4mm2,6mm2) | |
| (2,3,4,5,6,7,8,10)×10mm2 | |
| KVV22,ZR-KVV22 KYJV22,ZR-KYJV22 |
(7,8,10,12,14,16,19,24,27,30)×0.75mm2 |
| (4,5,6,7,8,10,12,14,16,19,24,27,30)×1.0mm2 | |
| (2,3,4,5,6,7,8,10,12,14,16,19,24,27,30)×(1.5mm2,2.5mm2) | |
| (2,3,4,5,6,7,8,10,12,14)×(4mm2,6mm2) | |
| (2,3,4,5,6,7,8,10)×10mm2 | |
| KVV32,KVV23 KYJV32,KYJV23 |
(7,8,10,12,14,16,19,24,27,30)×(0.75mm2,1.0mm2,1.5mm2) |
| (4,5,6,7,8,10,12,14,16,19,24,27,30)×2.5mm2 | |
| (4,5,6,7,8,10,12,14)×(4mm2,6mm2) | |
| (4,5,6,7,8,10)×10mm2 | |
| KVVP2 ,ZR-KVVP2 KYVP2,KYJVP2 ZR-KYJVP2 |
(4,5,6,7,8,10,12,14,16,19,24,27,30)×(0.75mm2,1.0mm2,1.5mm2,2.5mm2) |
| (4,5,6,7,8,10,12,14)×(4mm2,6mm2) | |
| (4,5,6,7,8,10)×10mm2 | |
| KVVP22,ZR-KVVP22 KYVP22,KYJVP22 |
(4,5,6,7,8,10,12,14,16,19,24,27,30)×(0.75mm2,1.0mm2) |
| (2,3,4,5,6,7,8,10,12,14,16,19,24,27,30)×(1.5mm2,2.5mm2) | |
| (2,3,4,5,6,7,8,10,12,14)×(4mm2,6mm2) | |
| (2,3,4,5,6,7,8,10)×10mm2 | |
| KVVP2-22,ZR-KVVP2-22 | (4,5,6,7,8,10,12,14,16,19,24,27,30)×(0.75mm2,1.0mm2,1.5mm2,2.5mm2) |
| (2,3,4,5,6,7,8,10,12,14)×(4mm2,6mm2) | |
| (2,3,4,5,6,7,8,10)×10mm2 |
